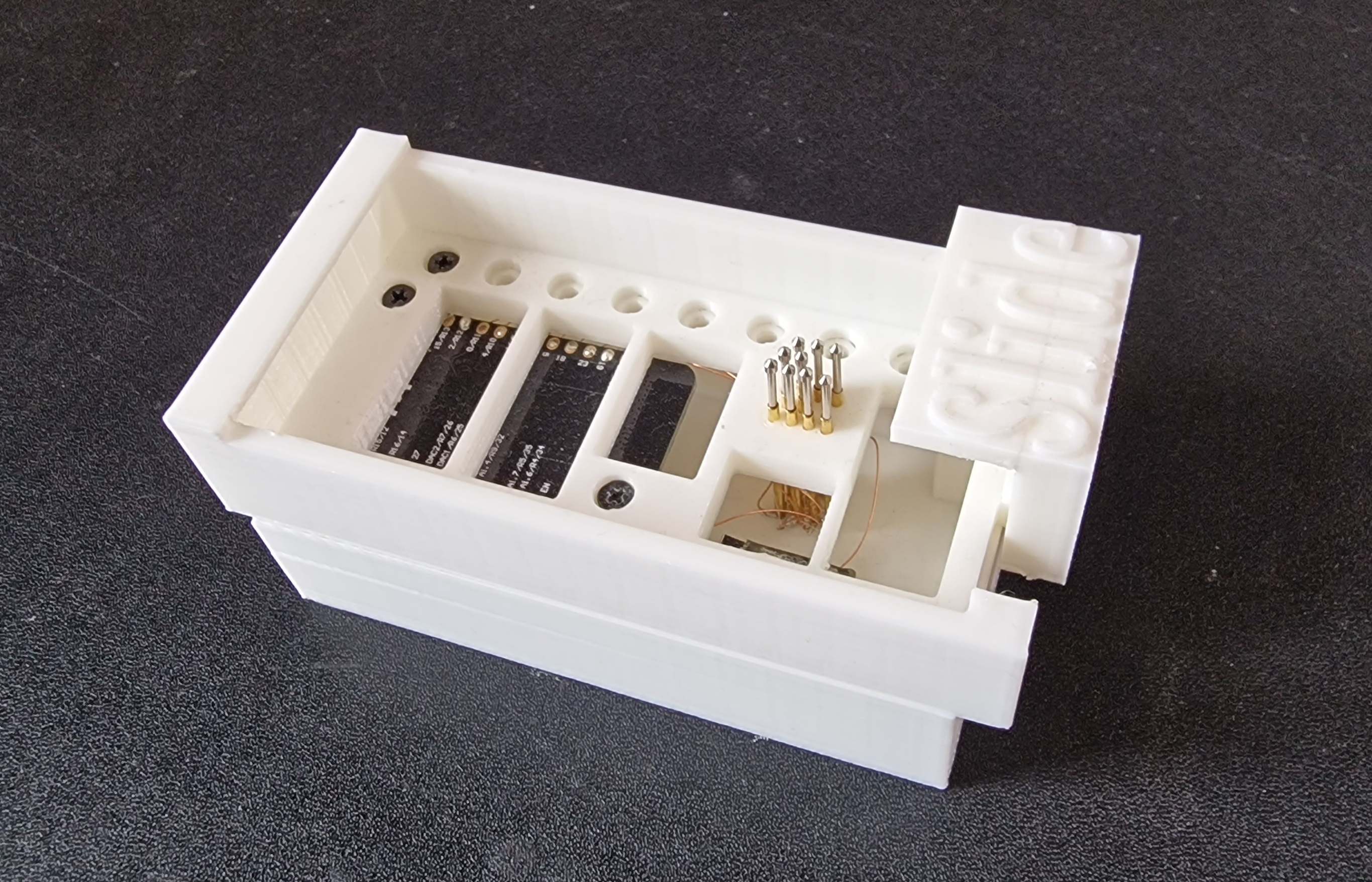

3D-printed programming jig

Jig from ATC1441

Version: ZBS243_Pogo_Flasher

atc1441_jig1 atc1441_jig2
  • The Jig is printed in 3 parts, and uses the 1.5mm Pogo Pins like P100-H2
  • The Screws to connect the main and bottom body together need to be screwed in quite hard anything from 1-3mm should work
  • The body and screws are designed for the ESP32 Lolin32 Lite board

Also available on Tinkercad
